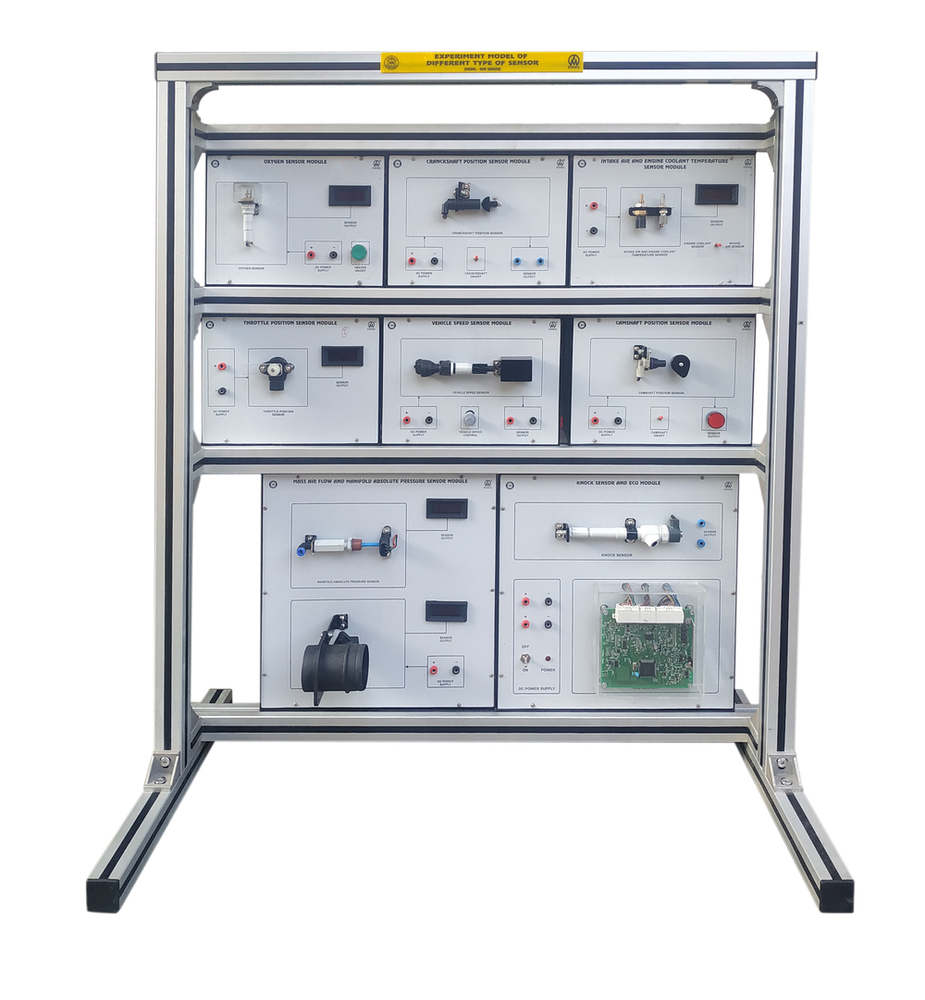

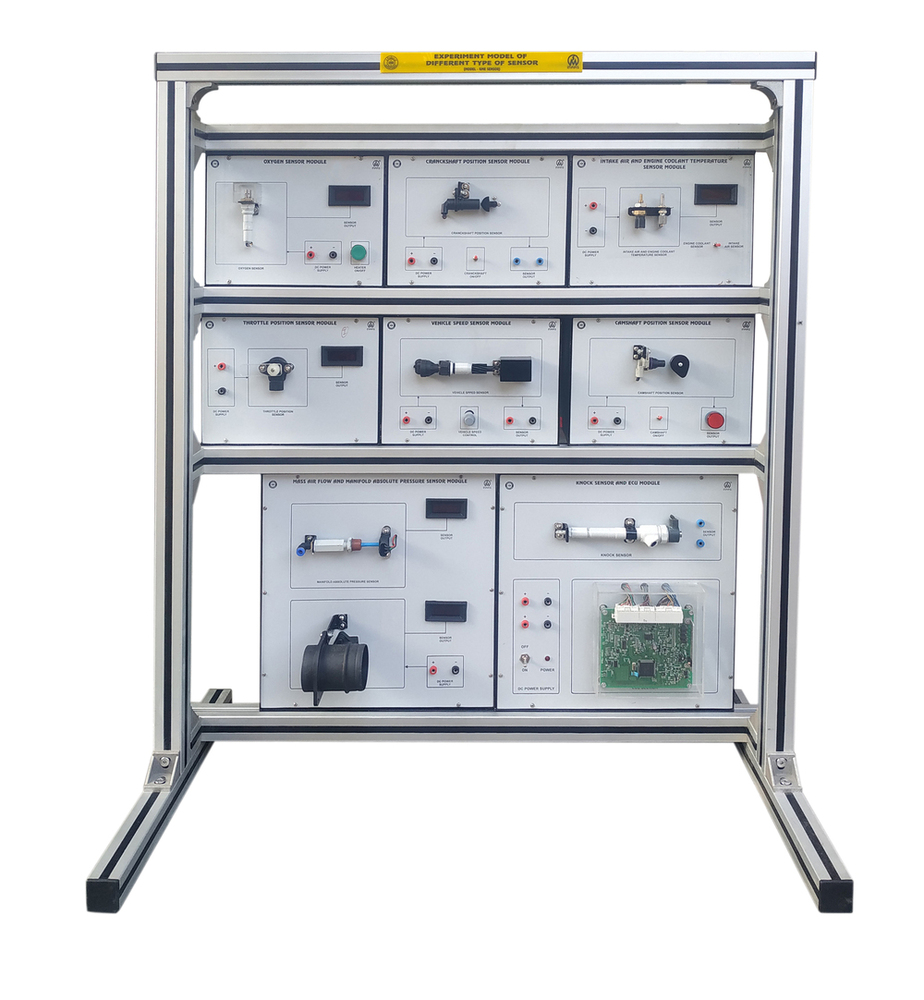

Sensor lab Sensor training platform
1120000 INR/Number
Product Details:
- Frequency 50/60 Hz (for power supply modules)
- Voltage 220-240V AC
- Automation Grade Manual, Semi-Automatic modules available
- Feature Modular, Expandable, Versatile, Hands-on experiments
- Power Source AC Mains
- Core Components Modular sensor trainer panels, wiring terminals, meters, switches
- Measurement Range Depends on installed sensor module (e.g. 0-100C, 0-10 bar, etc.)
- Click to View more
X
Sensor lab Sensor training platform Price And Quantity
- 1 Number
- 1120000 INR/Number
Sensor lab Sensor training platform Product Specifications
- Modular sensor trainer panels, wiring terminals, meters, switches
- Depends on installed sensor module (e.g. 0-100C, 0-10 bar, etc.)
- Multiple sensors/trainers can be handled simultaneously
- SL-STP-01
- Approx. 1200 x 500 x 1600 mm
- Approx. 35-50 kg
- Educational Training, Lab Experimentation
- -10C to 60C (depends on sensor modules provided)
- As per sensor specification (e.g. 1% F.S. typical)
- Aluminum frame, powder coated steel, plastic and PCB modules
- 50/60 Hz (for power supply modules)
- Sensor Trainer Platform
- Manual, Semi-Automatic modules available
- 220-240V AC
- Digital and Analog Meter Displays
- Modular, Expandable, Versatile, Hands-on experiments
- AC Mains
- Banana sockets and safety terminals for safe wiring
- Comprehensive lab manual included
- Rack Mount with removable experimental modules
- Optional digital interface for PC/LabVIEW integration
- Fused power input, emergency stop switch
- Designed for academic/lab environments
- Supports additional sensor and actuator modules
- Temperature, Pressure, Proximity, Light, Humidity, Level, Flow, Speed
- Ideal for 2-6 students per platform
- Powder-coated steel with anti-static finish
Product Description
Training platform will have following technicalfeatures
a On board display 7 capacitivetouchscreen
b Connectivity USB Ethernet HDMI
c Square Wave Generator up to 40KHz
d Low Pass Filter up to 30KHz
e High Pass Filter After 40KHz
f Inverting Amplifier Variable Gain110
g NonInverting Amplifier VariableGain 210
h Differential Amplifier Variable Gain110
i Instrumentation Amplifier VariableGain 1020
j Frequency to Voltage Input 110KHz
k Converter range Output 110Volt
l Voltage to Frequency Input 110Volt
m Converter range Output 110KHz
n Current to Voltage Input 420mA
o Converter range Output 05Volt
p Voltage to Current Input 05Volt
q Converter range Output 420mA
r AnalogDigital Converter 4 Channel05V
s DigitalAnalog Converter 1 Channel033V
t Input Output Ports 4IP 40P
u Operating Voltage Range 0 33V
v Ready assignment and exercise manuals
w Robust construction
This training system will have thefollowing sensors of the given specifications as per the below given table
Temperature Sensors
1 LM35 10mV C
2 Platinum RTD 100W at 0C Tempcoefficient 0385 W C
3 K Type Thermocouple 0C to 80C
4 J Type Thermocouple 0C to 80C
5 AD590 55C to 150C
6 NTC Thermistor 47K
Optical Sensors
1 L14G1 Photo Transistor 500nm 1100nm
2 Photovoltaic Cell 500mV 580mV
3 Phot Diode 500nm 1100nm
IR Sensors
1 TSOP 1738
2 IR LED
Pressure Sensor
1 Pressure Transducer 0 to 60 psidifferential input
2 Foot Pump 0 to 60 psi
3 Supply Voltage 5V DC
LVDT Coil
1 Measurement Range 20 mm 10 mm
3 Excitation Voltage 4Vppapproximately
4 Micrometer Scale 25 mm
5 Micrometer Least count 001 mm
2 Excitation Frequency 4 KHzapproximately
Load Cell
1 Rated Load 6 Kg
2 Supply Voltage 12V DC
3 Resistance 350 3
Strain Gauge
1 Strain Gauge 350 4 Nos
2 Gauge Factor 21
3 Maximum Bearable Weight 500 Gms
4 Cantilever Material StainlessSteelMS
5 Bridge Configuration Full Bridge
Gas Sensor
1 Supply Voltage 5V DC
2 Warm up Time 10 Min
3 Calibrated Gas 1000 ppm isobutane
Alcohol Sensor
1 Supply Voltage 5V DC
2 Output Voltage 0 to 5V DC
3 Warm up Time 10 Mins
Optocoupler Sensor
1 Input Voltage 5V
2 Output Voltage 5V approximately
Magnetic Reed Sensor
1 Maximum Voltage 5Vdc
2 Maximum Current 05A at up to 10W
3 Magnetic Reed Switch Type Normally
Level Sensor
1 Transducer Capacitive Type
2 Level Measurement Range 2 3 Liter
Accelerometer Sensor
1 Supply Voltage 33V DC
2 ADC channel X Y Z 3
3 Operating Current 1ma
4 Zero G output voltage X Y Z Idleoutput is VDD2 So 33V2165V
Temperature Humidity Sensor
1 Supply 5V DC
2 Operating Humidity 0 to 100 RH
3 Output Signal Analog Voltage
4 Temperature Range 0 to 100 C
5 Output Signal Analog Voltage
Air Quality Sensor
1 Supply 33V to 5V
2 Output Signal Analog Voltage
3 Detection Range 10 300 ppm NH3 10 1000 ppm Benzene 10 300ppm Alcohol
4 Heater Voltage 50V
PIR Sensor Atmospheric Pressure Sensor
1 Supply Voltage 5V DC
2 Detection Range 6 Meters
1 Supply Voltage 5V
2 Pressure Range
3 Min 15kPa
4 Max 115 kPa
Versatile Modular Design
This platform features a rack-mount structure with removable sensor modules, enabling educators to customize and expand experiments by adding various sensors or actuators. Its modularity ensures long-term value and adaptability for evolving educational requirements.
Safe and Durable Construction
Engineered with powder-coated steel, an anti-static work surface, and an aluminum frame, the Sensor Lab platform offers durability and safety. Fused power inputs, emergency stop switches, and secure terminals provide robust protection for users and equipment.
Comprehensive Experimentation Tools
Students benefit from hands-on experiments using digital and analog displays, comprehensive lab manuals, and optional PC/LabVIEW integration for advanced data analysis. The platform supports group learning for 2-6 students while accommodating simultaneous multi-sensor operation.
FAQ's of Sensor lab Sensor training platform:
Q: How do students safely connect and operate the Sensor Lab Sensor Training Platform?
A: Students use banana sockets and safety terminals for secure wiring connections. The platform is equipped with a fused power input and an emergency stop switch to ensure safe operation during experiments.Q: What educational benefits does the Sensor Lab platform offer?
A: The platform provides practical, hands-on experience in sensor technology, supporting both manual and semi-automatic modules. Students learn through real-world experimentation with temperature, pressure, light, and other sensors, fostering teamwork and technical skills.Q: When should the optional digital interface with PC/LabVIEW integration be used?
A: The digital interface is recommended when advanced data acquisition, analysis, or automation is required. It is ideal for higher-level courses or research projects where interfacing with computers enhances experimental outcomes.Q: Where is the Sensor Lab Sensor Training Platform most suitable for use?
A: This equipment is designed for use in academic laboratories, technical colleges, and university research labs, providing a safe and scalable solution for group-based sensor training and experimentation.Q: What is the process for expanding the Sensor Lab platform with additional modules?
A: Expansion is simple-additional sensor or actuator modules can be easily attached to the rack-mount system, with corresponding wiring and configurations outlined in the included comprehensive lab manual.Q: How accurate are the readings on this platform?
A: The accuracy depends on the installed sensor modules. For example, typical sensors offer an accuracy of around 1% of Full Scale (F.S.), with measurement ranges specific to each module, such as 0-100C for temperature or 0-10 bar for pressure.Q: What are the core usage scenarios for the Sensor Lab Sensor Training Platform?
