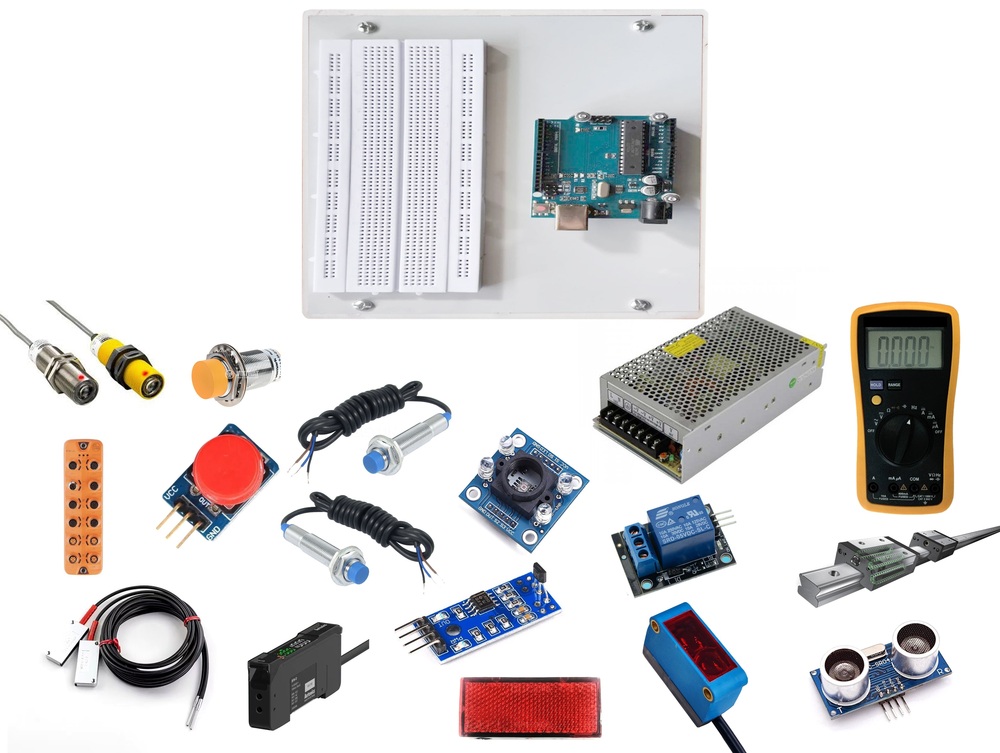

SENSOR TRAINER KIT
120000 INR/Number
Product Details:
- Power Source AC Mains or External Adapter
- Voltage 230V AC, 50Hz
- Measurement Range Sensor specific
- Accuracy Sensor dependent (typical 1-5%)
- Capacity Multiple sensor simulation channels
- Feature Hands-on Experiments, Sensor Output Study, Modular Design
- Automation Grade Manual
- Click to View more
X
SENSOR TRAINER KIT Price And Quantity
- 1 Number
- 120000 INR/Number
- 8-10 standard experiments included
- Pre-calibrated at factory
- Supports additional sensor modules
- LDR, Thermistor, Proximity, IR, Ultrasonic, and others
- Terminal blocks and BNC connectors
- Analog voltage, Frequency
- Theoretical background, Viva questions, Circuit diagrams
- Patch cords, User manual, Experiment manual
- Indoor, Dry
- Overload Protection, Fuse
SENSOR TRAINER KIT Product Specifications
- AC Mains or External Adapter
- 230V AC, 50Hz
- Sensor specific
- Powder Coated Metal Enclosure, PCB, Connectors
- Approx. 2-4 Kg
- Sensor dependent (typical 1-5%)
- Multiple sensor simulation channels
- Educational/Training Kit
- Hands-on Experiments, Sensor Output Study, Modular Design
- LED indicators and digital display
- Manual
- Approx. 320mm x 220mm x 100mm
- SenTra-01
- Demonstration and Study of Basic Electronic Sensors
- 50 Hz
- Various Sensors (LDR, Thermistor, Proximity, etc.), Signal conditioning circuits, Microcontroller
- Ambient Lab Environment
- 8-10 standard experiments included
- Pre-calibrated at factory
- Supports additional sensor modules
- LDR, Thermistor, Proximity, IR, Ultrasonic, and others
- Terminal blocks and BNC connectors
- Analog voltage, Frequency
- Theoretical background, Viva questions, Circuit diagrams
- Patch cords, User manual, Experiment manual
- Indoor, Dry
- Overload Protection, Fuse
SENSOR TRAINER KIT Trade Information
- 10 Number Per Month
- 7 Days
- All India
Product Description
1 Magnetic field sensor
Operating voltage 24V DC
Sensing Range 60 75 mm
LED Yellow Type Flush
Switching element function PNP NO
2 Inductive sensor Flush
Operating voltage 24V DC
Sensing Range 4 6 mm
LED Yellow
Type Flush Switching element function PNP NO
3 Inductive sensor nonFlush type
Operating voltage 24V DC
Sensing Range 8 10 mm
LED Yellow
Type NonFlush
Switching element function PNP NO
4 Inductive Analog sensor
Operating voltage 24V DC
Sensing Range 1 to 5mm
Non flush
Type Flush
Output 420 mA
5 Capacitive sensor
Operating voltage 24V DC Sensing Range 4 6 mm LEDYellow Type Flush Switching element function PNP NO
6 Optical Thru beam sensor
Operating voltage 24V DC
Sensing Range 0 10 m
Display Signal Yellow Operating green
Light Infrared Red
Switching element function PNP NO
7 Optical sensor Retro reflective withpolarization filter
Operating voltage 24V DC
Sensing Range 0 to 5mm Non flush
LED Yellow Light Infrared Red
Switching element function PNP NO
8 Reflector Rectangular
9 Optical sensor Diffuse with backgroundsuppression
Operating voltage 24V DC
Sensing Range 5 350 mm
LED Green Power ON
LED Yellow Lights ON when object is detected
Light Infrared Red
10 Optical sensor Diffuse
Operating voltage 24V DC
Sensing Range 0 to 1000 mm
LED Green Power ON
LED Yellow Lights ON when object is detected
Light Infrared Red
11 Fiber optic sensor amplifier unit
Operating Voltage 24V DC
Sensing Range Upto 150 mm
Light Type Modulated visible red light
12 Plastic Fiber optic Diffuse type
Bending radius min25 mm Fiber optic length 2000 2500 mm Fiber optic diameter 22 mm
13 Plastic Fiber optic Thru beam type
Bending radius min25 mm
Fiber optic length 2000 2500 mm
Fiber optic diameter 22 mm
14 Colour sensor
Operating voltage 24V DC
Sensing Range 9 10 mm
Light source LED
Light type Visible greenredblue S
witching element function PNP NO
15 Ultrasonic sensor
Operating voltage 24V DC
Sensing Range 30 to 400mm
Type Flush
Output 420 mA
16 LM guide unit
Workpiece moment in Xaxis 0 320 mm
Workpiece moment in Yaxis 0 65 mm
Barrier guide Ball type
17Workpiece for Magnetic sensor
18 Workpiece for Inductive Capacitivesensor
19 Workpiece for Optical Ultrasonicsensor
20 Workpiece for Colour sensor
21 Multimeter
22 Switch Mode Power Supply
Input voltage 230V AC 50 HZ Output voltage 24V DCOutput indication LED indicator AMBER color Protection Overload Shortcircuit Fuse glass type Input 2A Output 4A
No of output at least 1 number
23 Push button module
Operating voltage 24V DC
Operation NO NC type with Led indicator
Led indicator operating voltage 24V DC
Push button with spring return Green colour button
Push button with detent Red colour button 1
24 Relay logic unit 4CO 3 Relays
Operating voltage 24 VDC
Operation NO NC type
Type4Changeover 3 relays 1
Textbooks and Manuals related to technology will beprovided along with the hardware
Comprehensive Sensor Learning
This kit provides a solid foundation in sensor technology by offering hands-on experiments using a diverse range of sensors. Each module includes theoretical concepts, circuit diagrams, and viva questions to reinforce learning and practical understanding.
Versatile Connectivity and Output
Equipped with terminal blocks and BNC connectors, the kit allows flexible connections for experiments. Outputs can be observed via analog voltage, frequency signals, and digital display, making data analysis straightforward and accessible for learners.
Designed for Safety and Durability
The kit ensures safety with inbuilt overload protection and fuses. Its robust, powder-coated metal enclosure and quality connectors guarantee long-term use, while the pre-calibrated sensors facilitate precise and reliable operation straight out of the box.
