HYBRID POWERTRAIN SYSTEM of IC Engine Single Cylinder Petrol Engine

Product Description

HYBRID POWERTRAINSYSTEM

ICEngine Single Cylinder Petrol Engine (100“125 cc) with EFI system

ElectricMotor Permanent Magnet Synchronous Motor (PMSM) / BLDC Motor, 1“3 kW

ControllerHybrid Powertrain MCU with CAN Communication

TransmissionBelt Drive or Coupling to Common Shaft

BatteryPack Li-ion 48 V / 60 V, 30“40 Ah

GeneratorMode Motor acts as generator during braking

SafetyFeatures MCB, emergency stop, overload & overvoltage protection

PowerRequirement 230 V AC, 50 Hz, 15 A

FrameConstruction Powder-coated mild steel frame with mounted components and acrylicguarding

System Overview “

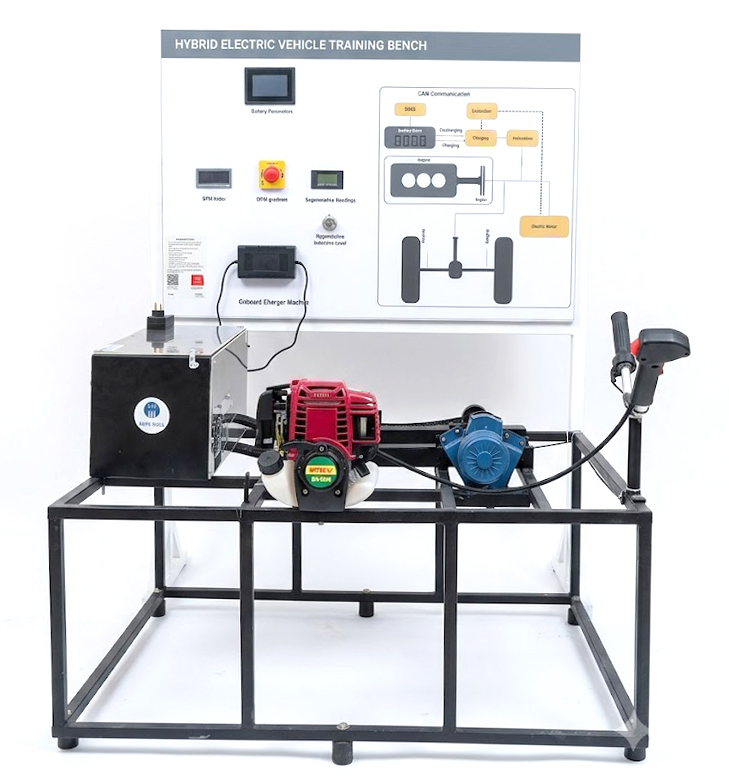

Acomplete training and research test bench designed to demonstrate the workingprinciples, integration, and control of a Hybrid Electric Vehicle (HEV)powertrain combining an IC Engine and an Electric Motor.The setup enablestrainees and researchers to study parallel, series, and plug-in hybrid modes,focusing on energy flow, regenerative braking, and power management strategies.
