ENGINE COOLING SYSTEM (AIR & WATER TYPE)
100000 INR/Unit
Product Details:
- Frequency 50 Hz
- Model No ECS-4122
- Core Components Heat Exchanger (Radiator), Fan, Water Pump, Connecting Hoses, Control Panel, Engine Cylinder Block
- Power Source Electric Mains
- Voltage 220V AC
- Accuracy 2C (temperature readings)
- Measurement Range Up to 120C (coolant/air temperature)
- Click to View more
X
ENGINE COOLING SYSTEM (AIR & WATER TYPE) Price And Quantity
- 100000 INR/Unit
- 1 Number
ENGINE COOLING SYSTEM (AIR & WATER TYPE) Product Specifications
- Both Air and Water Cooling System Demonstrator
- Engineering Laboratory Demonstration/Training
- Approx. 900 x 700 x 1600 mm
- Mild Steel Frame, Aluminum/Alloy Engine Block, Polycarbonate Panel
- Ambient to 120C
- Demonstrates both air and water cooling process; with see-through panel for academic visualization
- Variable, based on engine model (typically up to 5 liters)
- Semi-Automatic
- Up to 120C (coolant/air temperature)
- Approx. 60-80 kg
- 220V AC
- 2C (temperature readings)
- Analog/Digital monitoring gauges
- Electric Mains
- Heat Exchanger (Radiator), Fan, Water Pump, Connecting Hoses, Control Panel, Engine Cylinder Block
- ECS-4122
- 50 Hz
- Max. 10-15 LPM
- Air and Water
- Lockable caster wheels for easy movement
- Approximately 5 liters
- Manual reading, digital sensor optional
- Fused electrical connections, overheat protection switches
- Electric motor driven, high-speed axial fan
- Approx. 0.25 HP
- Plug-and-play, supervised laboratory setup
- Copper/Aluminum core
- Main power switch, indicators, fuse protection
- Single cylinder demonstration
- Multiple test points for temperature/flow measurements
- Laminated, instructional graphics panel
ENGINE COOLING SYSTEM (AIR & WATER TYPE) Trade Information
- All India
Product Description

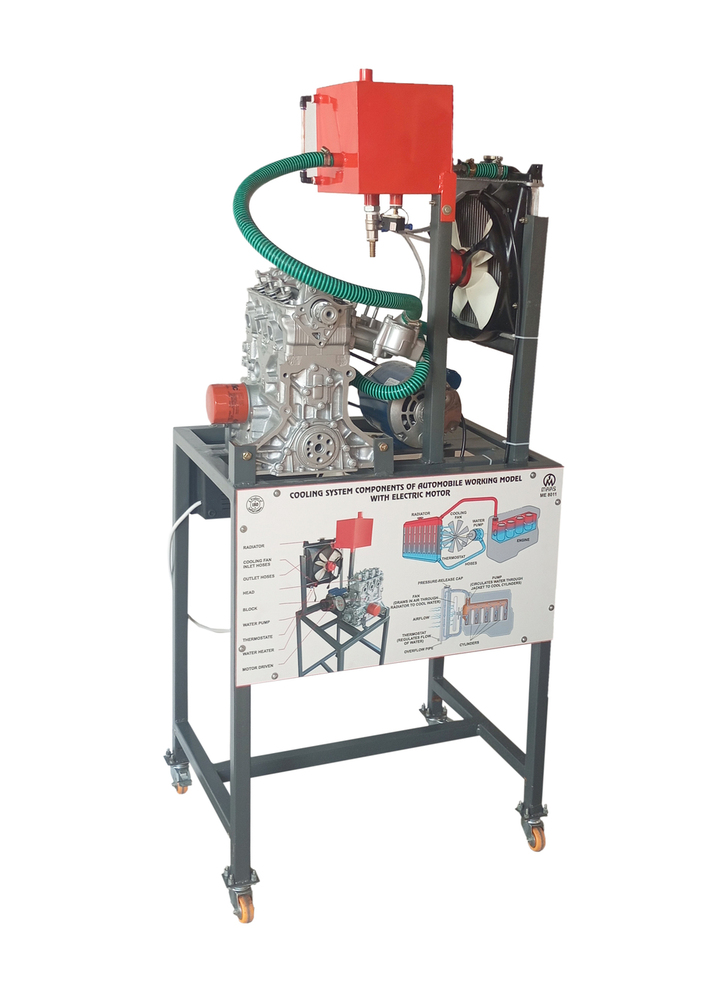

ENGINE COOLING SYSTEM (AIR & WATER TYPE) / CoolingSystem Components Arrangement on a Stand with Electric Motor
Technical Specifications:
CutawayModel of Cooling System Constructed from authentic used componentsAppropriately sectioned to reveal internal structures Features includeradiator, fan blade, water pump, and hoses Showcases intricate details andfunctionality A motor is connected to the water pump Demonstrates fluid flowwithin the system Includes a water heater for heating purposes A Colour fullprinted Schematic diagram and Circuit diagram with Part Naming with explanationwill be printed on to board and fixed along with the Model. The whole set-up iswell designed and the entire model is mounted on A good quality painted Metalstructure provided with caster wheels with brakes for easy movement of thesame. Power Requirement: 220VAC +10% , 50 Hz Standard Accessories: Instructionmanual
Comprehensive Dual Cooling Demonstrator
The ECS-4122 cooling system demonstrates both air and water cooling mechanisms on a single-cylinder engine block. With visible operational pathways and instructional panels, it provides clear, hands-on experience for learners, emphasizing comparison and understanding of both cooling processes.
Precision Measurement and Data Collection
Multiple observation points enable precise temperature and flow readings up to 120C. Users can manually log results using analog gauges or opt for digital sensors to enhance accuracy and streamline data collection, aligning the learning process with laboratory best practices.
Durable & Safe Laboratory Equipment
Built with a sturdy mild steel frame and a copper/aluminum core radiator, the system ensures durability and efficient heat dissipation. Safety features such as fused electrical connections and overheat protection switches help maintain safe operation during classroom demonstrations and training sessions.
FAQ's of ENGINE COOLING SYSTEM (AIR & WATER TYPE):
Q: How does the ECS-4122 demonstrate both air and water cooling processes?
A: The ECS-4122 is equipped with both a high-speed axial fan for air cooling and a water pump for water cooling. Users can switch between these processes to observe and compare heat dissipation methods in an engine, aided by instructional graphics and see-through panels.Q: What temperature range and measurement accuracy does the system support?
A: The system can measure coolant or air temperatures from ambient conditions up to 120C, with a measurement accuracy of 2C. Readings can be manually checked via analog gauges or digitally monitored with optional sensors.Q: When should the system's safety features be checked?
A: Safety features such as fused electrical connections and overheat protection switches should be inspected before each use, especially during laboratory setups. This ensures the system operates safely for users and prevents potential electrical hazards.Q: Where can temperature and flow measurements be observed on the equipment?
A: Multiple test points are provided on the demonstrator, allowing users to check temperature and flow at critical sections of the cooling system. Observation windows and clearly marked points enhance visibility and facilitate educational monitoring.Q: What is the typical usage process for the ECS-4122 in an engineering lab?
A: After plugging the unit into a 220V AC outlet, users can select the desired cooling method, initiate the pump/fan, and begin monitoring operational parameters. Supervised use is recommended, with manual readings or digital data collection as part of laboratory exercises.Q: What benefits does the ECS-4122 offer for laboratory demonstration and training?
A: This model enables interactive, practical training in real cooling processes. Students and instructors observe actual engine behavior under both cooling regimes, reinforcing theoretical concepts and developing valuable technical skills in a safe and controlled environment.Tell us about your requirement
