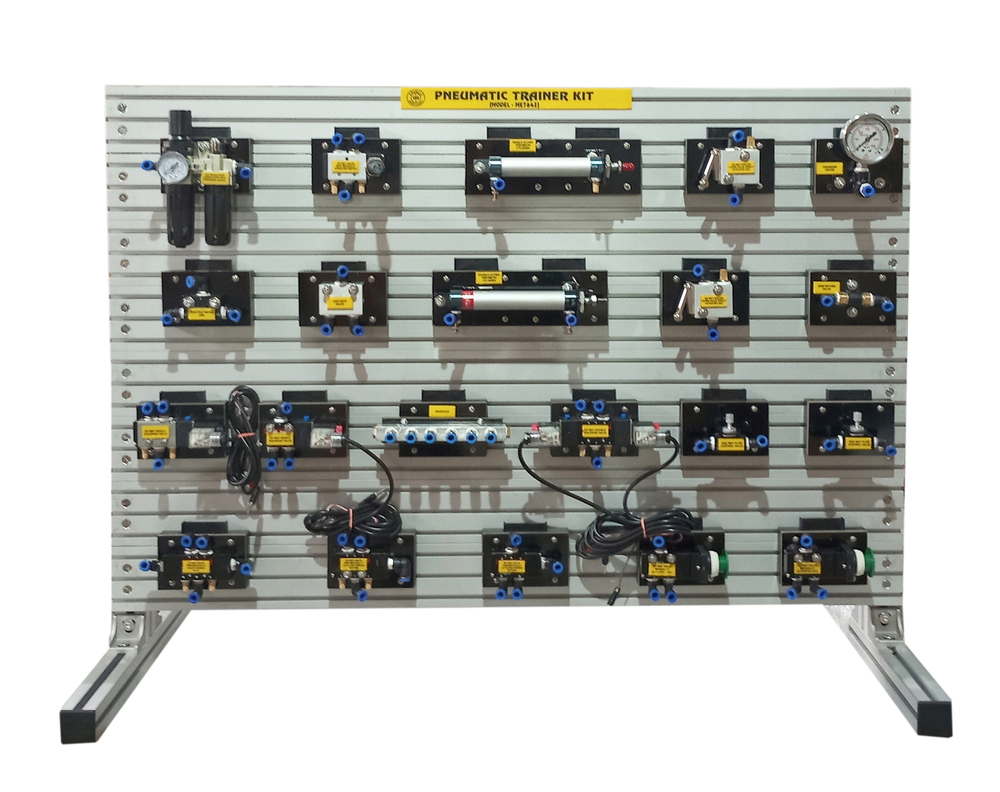

ELECTRO -- PNEUMATIC TRAINER KIT

Product Description

ELECTRO-PNEUMATIC TRAINER KIT

This kit will be designed with capability todemonstrate the design, construction and application of Electro-pneumaticcomponents and circuits. Will contain the items below in it.

1. FRL Unit with pressure gauge

Port size 1 / 4

Flow rate 500 - 550 lts / min

Filtration 40 Micron

2. Junction box with Slide valve

No. of outputs Minimum 7 nos.

3. Flow control valve unit

Control type Bidirectional

4. Single acting cylinder (SAC)

Cylinder bore size 25 “ 32 mm dia

Stroke 50 “ 60 mm

5. Double acting cylinder (DAC)

Cylinder bore size 25 “ 32 mm dia

Stroke 100 “ 125 mm

6. Union tee Dia4

7. Union Y Dia4

8. Plug Dia4

9. Tube (PU) OD8 (blue)

10. Tube (PU) OD4 (blue)

11. Tube cutter

12. 5/2 Single solenoid valve with spring return(with LED)

13. 5/2 Double solenoid (with LED)

14. Magnetic reed switch with clamp

Operating voltage DC 24V

Switching logic Solid state output -PNP

Connection type 3 pin male QD connector

15. Electrical connection set

Connector type 4mm Banana plug

 Cablecolours Red and black

16. Electrical push button module

 Operatingvoltage 24V - DC

Operation NO / NC type with Led indicator

Led indicator operating voltage 24V - DC

Push button with spring return Green colour button

Push button with detent Red colour button

17. Relay logic unit “ 4C/O “ 3 Relays

Operating voltage 24 VDC

Operation NO / NC type

 Type4-Changeover, 3 relays

18. Inductive proximity sensor assembly

Operating voltage 24 VDC

Operating distance 5mm ± 10%

 ConnectorType 3pin male QD connector

Sensor type Flush head type

19. Capacitive proximity sensor assembly

Operating voltage 24 VDC

Operating distance 8mm ± 10%

Connector Type 3pin male QD connector

Sensor type Non-flush head type

20. Optical proximity sensor assembly

Operating voltage 24 VDC

Operating distance 290mm ± 10%

Connector Type 3pin male QD connector

Sensor type Light sensing type

21. Electronic counter module

Operating voltage 24 VDC

Operation NO / NC type

Connection type 4mm banana plug

Display 6 digits LCD display

22. Electrical buzzer with indicator module

Operating voltage 24 VDC

Buzzer decibel value 60 dB

Connection type 4mm banana plug

23. ON & OFF delay timer Module

Operating voltage 24 VDC

On delay timer 1 “ 10s

Off delay timer 0.5 “ 10s

Connection type 4mm banana plug

24. Switch Mode Power Supply

Input voltage 230V AC 50 HZ

Output voltage 24V DC

Output indication LED indicator AMBER color

Protection (Overload & Short circuit) Fuseglass type (Input 2A; Output 4A)

No. of output at least 1 number

25. Proportional pressure regulator

Size 1/2

Operating Voltage 24V DC

Command signal 0-10V

Analog output 1-5V

Proportional Pressure Regulator-Control resolutionshall be ‰ 0.5% of full-scale output pressure or better.

Proportional Pressure Regulator-Repeatability shallbe ±0.5% of full-scale pressure or better under steady-state operatingconditions.

Proportional Pressure Regulator-The step responsetime (from 10% to 90% of commanded pressure change) shall be ‰ 500 ms.

26. Flow Sensor with display

Portsize 1/ 4

Flow measuring range 0 to 250 LPM

Pressure range 1-16bar

Operating voltage 24V DC

Switching output PNP NO, Analog 0 “ 10V

Electrical Connection M12, 4pin

27. Pressure sensor with Analog output

Operating voltage 24 VDC

Digital output 1 PNP

Analog output 4-20 mA

28. Emergency Switch

29. Rodless Cylinder with ISO 15552 standard

- Stroke: 170mm

- Adjustable end cushioning It has replaceable sealkits

Textbooks and Manuals related to technologies willbe provided along with the hardware.
