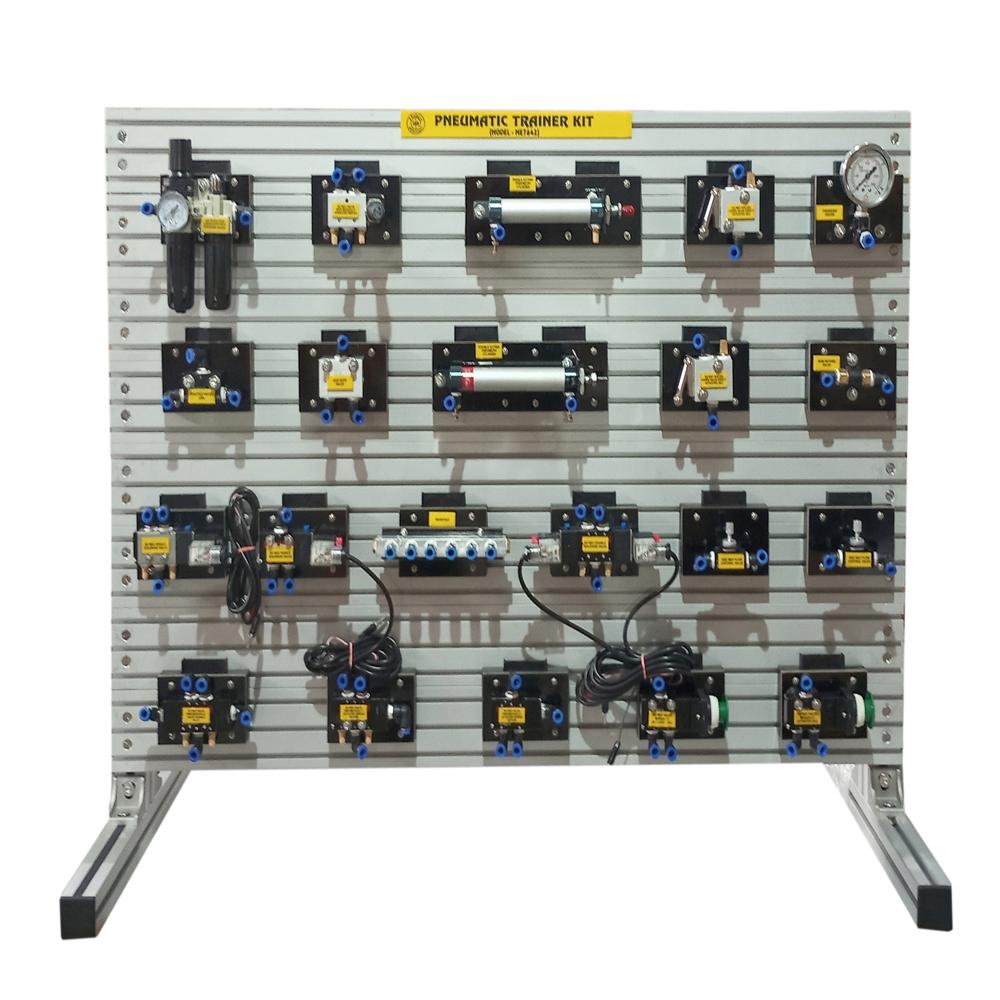

Name: ELECTRO-PNEUMATIC TRAINER KIT
Brand: Mars EDPAL Instruments Pvt. Ltd.
Price: 450000.0 INR
Availability: InStock

ELECTRO-PNEUMATIC TRAINER KIT Price And Quantity

Minimum Order Quantity 1

Price 450000.0 INR

Demo Experiments Supports 15+ standard electro-pneumatic circuit demonstrations

Learning Scope Covers basics to advanced electro-pneumatic control, logic implementation, troubleshooting

Safety Mechanisms Overload protection, Emergency stop switch

Input Pressure Max 8 bar

Panel Layout Front-mounted for ease of use

Noise Level < 60 dB(A) (compressor running)

Serviceability All modules easily replaceable for maintenance

Operating Medium Dry compressed air

Mounting Type Bench-top with anti-skid feet

Included Accessories Hoses, electrical connecting wires, user manual, set of pneumatic fittings

Programming Interface Relay logic and PLC compatible terminals

Level Indicator Yes, acrylic air reservoir with level marking

Output Channels 2 sets of actuator outputs

ELECTRO-PNEUMATIC TRAINER KIT Product Specifications

Display Type Analog and LED indicators

Frequency 50 Hz

Voltage 230 V AC

Core Components Solenoid Valves, Air Compressor Unit, Relay Board, Actuators, Flow Control Valves, Sensors, Piping

Usage Laboratory training, Technical Education, Skill Development

Model No EPT-100

Dimension (L*W*H) 1200 mm x 600 mm x 400 mm

Automation Grade Semi-Automatic

Capacity 2-4 user stations

Measurement Range Pressure up to 10 bar

Feature Modular design, Safety Fuses, Quick-coupling connections

Type Educational Trainer Kit

Accuracy High repeatability for electro-pneumatic operations

Weight Approximately 40 kg

Temperature Range 0C to 50C

Equipment Materials Mild Steel powder coated frame, Acrylic panel

Power Source 230V AC Mains

Demo Experiments Supports 15+ standard electro-pneumatic circuit demonstrations

Learning Scope Covers basics to advanced electro-pneumatic control, logic implementation, troubleshooting

Safety Mechanisms Overload protection, Emergency stop switch

Input Pressure Max 8 bar

Panel Layout Front-mounted for ease of use

Noise Level < 60 dB(A) (compressor running)

Serviceability All modules easily replaceable for maintenance

Operating Medium Dry compressed air

Mounting Type Bench-top with anti-skid feet

Included Accessories Hoses, electrical connecting wires, user manual, set of pneumatic fittings

Programming Interface Relay logic and PLC compatible terminals

Level Indicator Yes, acrylic air reservoir with level marking

Output Channels 2 sets of actuator outputs

ELECTRO-PNEUMATIC TRAINER KIT Trade Information

Supply Ability 10 Per Month

Delivery Time 7 Days

Product Description

Personalise skill development and capitalise on cutting-edge technical learning with the premier ELECTRO-PNEUMATIC TRAINER KIT - Model EPT-100. This decorated educational solution is pivotal for laboratory training, technical education, and hands-on skill building. Its front-mounted panel layout ensures ease of use, while 15+ standard demo circuits provide broad learning scope. Compatible with relay logic and PLC, it features high safety, replaceable modules, and competitive pricing. Bench-top design, superior build, and comprehensive accessories make this kit a top choice for institutions seeking reliability and advanced performance.

Versatile Training for Diverse Electro-Pneumatic Applications

The ELECTRO-PNEUMATIC TRAINER KIT is engineered for both specific and general educational uses in laboratories and technical skill centers. It boasts an intuitive, panel-based layout, modular components, and extensive demos for electro-pneumatic logic and control. Extra features such as safety fuses, overload protection, emergency stop, and a level-marked acrylic reservoir enhance usability. Its adaptability makes it suitable for applications beyond basic training, including troubleshooting simulations and advanced programming education.

Widespread Availability and Certification for Global Markets

Arriving securely packaged, the EPT-100 is manufactured and exported from India to meet international and domestic demand. Our premier supply ability ensures prompt delivery for academic and industrial institutions, with robust quality certifications supporting export market needs. The kit is ready for shipment across India and worldwide, reaching customers reliably, backed by comprehensive technical documentation and support services.

FAQ's of ELECTRO-PNEUMATIC TRAINER KIT:

Q: How is the ELECTRO-PNEUMATIC TRAINER KIT used in skill development laboratories?

A: The kit is used for hands-on demonstration and training in electro-pneumatic circuits, helping users understand control logic, troubleshooting, and programming applications with relay logic or PLCs.

Q: What safety mechanisms are integrated into the trainer kit?

A: It includes key safety features such as overload protection, safety fuses, an emergency stop switch, and a bench-top design with anti-skid feet, ensuring safe classroom and laboratory operation.

Q: When is the ELECTRO-PNEUMATIC TRAINER KIT ready for dispatch after ordering?

A: The kit is promptly packaged and dispatched after order confirmation, with timely delivery schedules tailored for both domestic and export markets.

Q: Where can the ELECTRO-PNEUMATIC TRAINER KIT be installed?

A: The kit is designed for easy bench-top mounting and can be used in technical education institutions, training centers, and laboratories requiring hands-on automation training.

Q: What are the benefits of the modular design of this trainer kit?

A: The modular design allows easy replacement and serviceability of components, making maintenance straightforward and ensuring long-term, flexible educational use.
