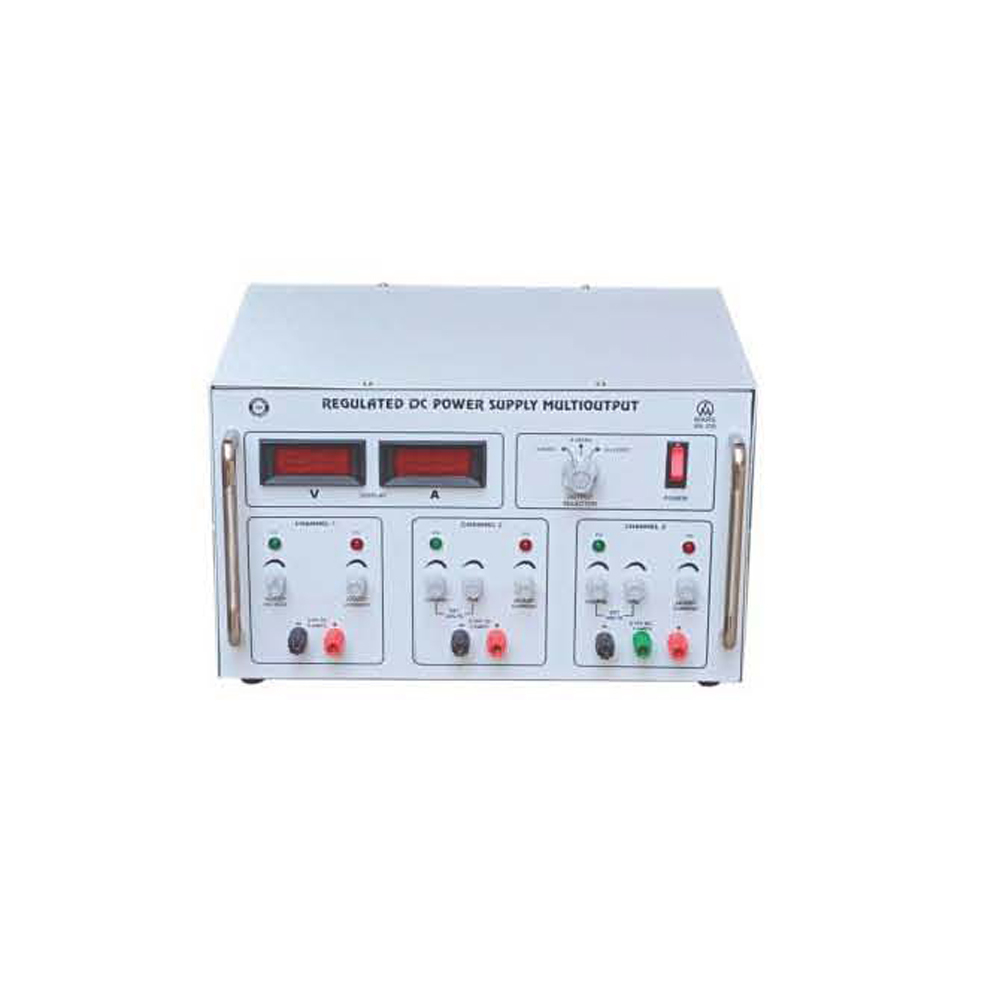

DC Regulated Power Supply 0 -30 V, 30 A
150000 INR/Number
Product Details:
- Mounting Type Bench Top
- Measuring Range Voltage: 0-30 V, Current: 0-30 A
- Interface Type Banana output terminals
- Features Short circuit protection, Overload protection, Overvoltage protection, Constant voltage (CV) / Constant Current (CC) Modes
- Application Laboratory, Industrial, Testing and R&D applications
- Humidity 85% RH (Non-condensing)
- Automation Grade Manual
- Click to View more
X
DC Regulated Power Supply 0 -30 V, 30 A Price And Quantity
- 135000.00 - 150000.00 INR/Number
- 1 Number
- 150000 INR/Number
- Approx. 420 x 270 x 180 mm
- Provided for input protection
- 0.1% + 15 mV
- 0.05% + 10 mV
- Metal (Powder-coated steel)
- 0C to 40C
- Air-cooled
- Fine and coarse adjustment knobs
- Overvoltage, Overcurrent, Short-circuit protection
- Built-in cooling fan
- Light grey / beige
- 1 mVrms
- -10C to 70C
DC Regulated Power Supply 0 -30 V, 30 A Product Specifications
- Voltage: 0.1 V, Current: 0.01 A
- Voltage: 0-30 V, Current: 0-30 A
- Bench Top
- 30 A continuous
- 220 V AC
- DC Regulated Power Supply
- Banana output terminals
- DC power supply for experiments, testing, and equipment
- Approx. 30 kg
- Digital / Rotary knob
- Short circuit protection, Overload protection, Overvoltage protection, Constant voltage (CV) / Constant Current (CC) Modes
- Laboratory, Industrial, Testing and R&D applications
- 85% RH (Non-condensing)
- 50 Hz
- <2 ms
- Manual
- 0-30 V, 0-30 A
- 0.5% + 2 digits
- Digital 3-digit LED display
- 0 - 40C
- AC 220 V 10%, 50 Hz
- Approx. 420 x 270 x 180 mm
- Provided for input protection
- 0.1% + 15 mV
- 0.05% + 10 mV
- Metal (Powder-coated steel)
- 0C to 40C
- Air-cooled
- Fine and coarse adjustment knobs
- Overvoltage, Overcurrent, Short-circuit protection
- Built-in cooling fan
- Light grey / beige
- 1 mVrms
- -10C to 70C
DC Regulated Power Supply 0 -30 V, 30 A Trade Information
- 10 Number Per Month
- 7 Days
- All India
- ISO

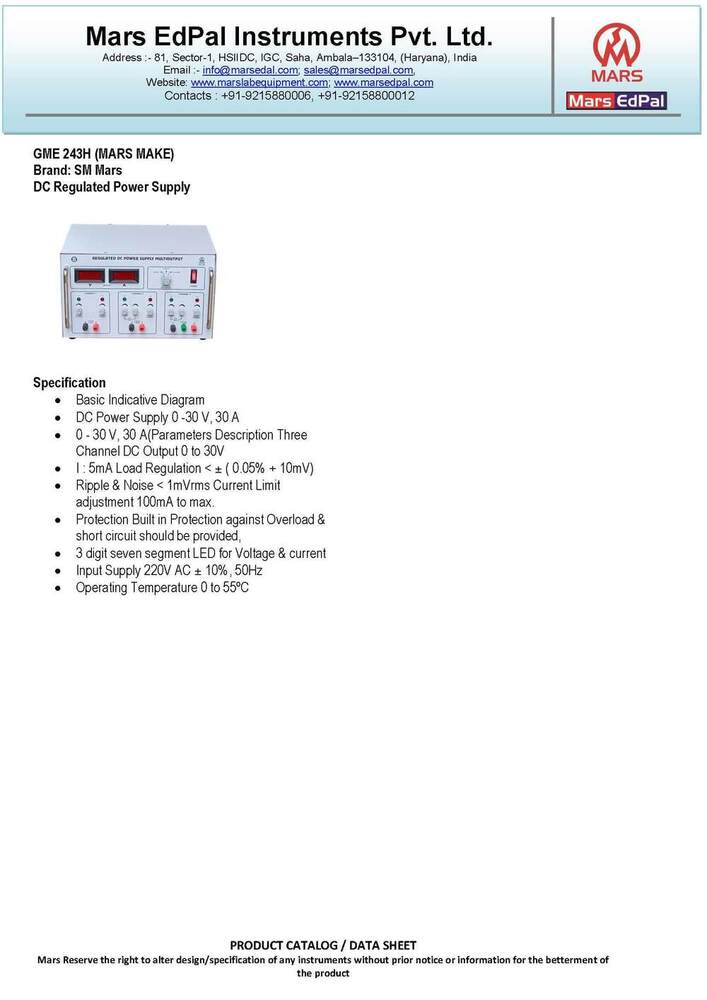

Product Description
Specification
Basic Indicative Diagram
DC Power Supply 0 30 V 30 A
0 30 V 30 AParameters Description Three Channel DC Output 0 to 30V
I 5mA Load Regulation 005 10mV
Ripple Noise 1mVrms Current Limit adjustment 100mA to max
Protection Built in Protection against Overload short circuit should be provided
3 digit seven segment LED for Voltage current
Input Supply 220V AC 10 50Hz
Operating Temperature 0 to 55C
Engineered for Precision and Safety
This bench-top DC power supply delivers outstanding performance for sensitive experiments, production testing, or R&D environments. Constant voltage and current modes, combined with high accuracy and multiple protection circuits, ensure reliable operation even under demanding use. The unit's air-cooled system and built-in fan maintain optimal temperature, guarding against overheating during prolonged operation.
User-Friendly Controls and Durable Build
Designed for ease of use, the front panel offers fine and coarse adjustment knobs, digital rotary controls, and a bright, 3-digit LED display for real-time monitoring. The rugged, powder-coated metal housing guarantees durability in busy labs or workshops. Compact dimensions and integrated fuse protection make this power supply both versatile and safe for all manner of DC equipment testing.
FAQ's of DC Regulated Power Supply 0 -30 V, 30 A:
Q: How do I adjust the voltage and current on this DC regulated power supply?
A: Voltage and current can be precisely set using the fine and coarse adjustment knobs located on the front panel. The device offers both digital and rotary knob controls for easy tuning, and settings are displayed clearly on the three-digit LED display.Q: What protection features are included in this power supply, and how do they work?
A: This unit comes with overvoltage, overcurrent, and short-circuit protection, automatically disconnecting or limiting output to protect connected devices and the power supply itself. An input fuse and robust enclosure further enhance user and equipment safety.Q: When is this DC regulated power supply most beneficial to use?
A: This power supply is ideal for laboratory experiments, industrial equipment testing, and R&D applications where precise DC voltage and current control are required. Its accuracy and protective features make it suitable for sensitive or high-demand electronic testing.Q: Where can this power supply be mounted or positioned during operation?
A: The supply is designed as a bench-top unit and requires a well-ventilated environment. Its cooling fan and air-cooled system ensure safe operation, so avoid blocking ventilation openings and operate within the 0C to 40C temperature range.Q: What is the process for connecting equipment to this power supply?
A: Use standard banana output terminals on the front panel to connect your device. Ensure all connections are secure and correct before powering on the supply and adjusting output settings.Q: What are the main usage benefits of this power supply?
A: Users benefit from highly stable power output, precise voltage and current control, and robust safety measures. The unit supports continuous 30 A operation and features rapid response times, making it efficient for both routine and advanced testing.Q: How is the output monitored and what is the accuracy of readings?
A: Output voltage and current are monitored via the digital 3-digit LED display. Measurements offer a high degree of accuracy (0.5% + 2 digits), with voltage resolution of 0.1 V and current resolution of 0.01 A for detailed control.Tell us about your requirement
