Electronic Total Station

Product Description

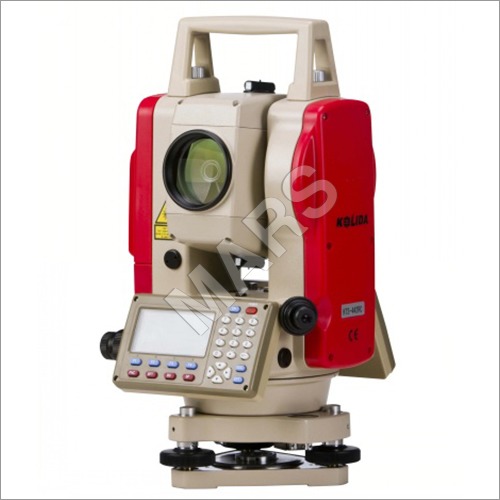

ME TS05 - Total Station

Technical Specification

Measuring range

1P 5.0 km , 3P 8-10km, Mini prism 800m, Digital display GraphicLCD on both side, Accuracy With prism : 2mm+2ppm, Measuring time Fine 1.0stracking.5s, Atmospheric correction Automatic correction by inputting parameter,Prism constant Automatic correction by, inputting parameter

Angle measurement

Measurement method ABSOLUTE ENCODING, Diameter of the rasterdisk 79mm, Minimum reading 1/5optional, Accuracy 2, Detection method Horizontaldual vertical dual

Telescope

Image Erect, Length 154mm, Effective aperture 45mm, Magnification30×, Minimum focus 1m

Compensation

System Dual Axis liquid-electric, Resolving power 1

Sensitivity of vials

Plate vial 30/2mm, Circular vial 8/2mm

Data and Communication

GPS & Total Station can interchange data without any data conversion

Keypad

Multifunction board on both side

Battery

Power supply Rechargeable lionbattery, Backup time 8 Hour

Dimension & Weight

Dimension 160mm×150mm×330mm, Weight 5.8kg

Environmental specification

Dust/water(IEC 60529) IP55, Working temperature range : 20degree C - 50 degree C, Humidity 95 percent non condensing

Standard Accessories : Stand, Poles and Prism
